Intelligent hardware,
built for real conditions.

Sensing, embedded systems and control. Engineered from the physical world up.

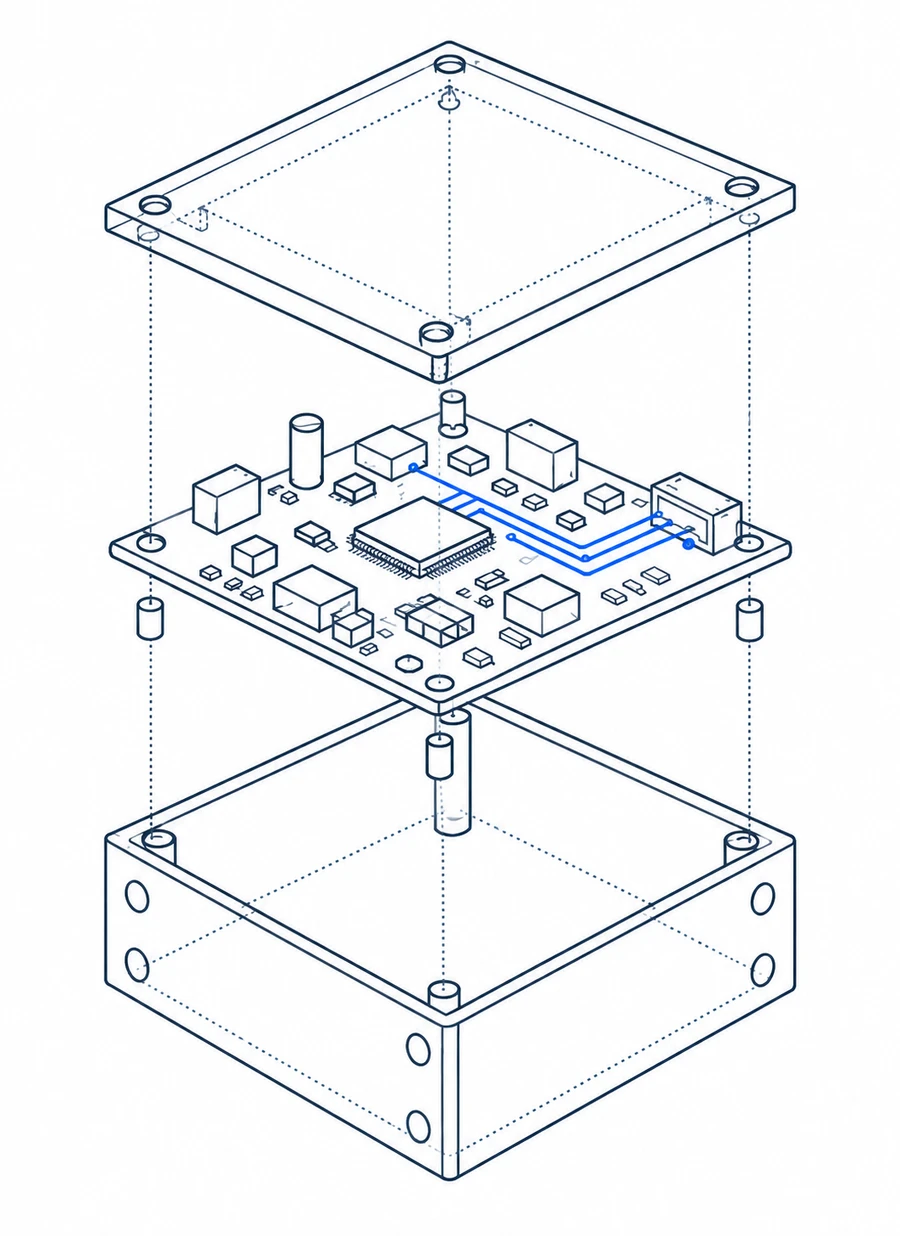

Illustrative device: a signal is sampled, processed on the circuit board and sent through its connector. Shown as an exploded enclosure, circuit board and cover.

AIMRXD HARDWARE

From requirements to production.

01 / Requirements

REQUIREMENTS PLANNING

A clear brief. A testable outcome.

Illustrative process

Use & outcomes
Users, tasks and what success means.
Operating limits
Power, interfaces and real conditions.
Feasibility & risks
Compare options. Test assumptions.
Acceptance criteria
Define how each requirement is checked.
Review & agree
Resolve gaps and agree a testable brief.

Review. Refine. Repeat.Prototype and test findings feed back into the requirements.

02 / Circuit design

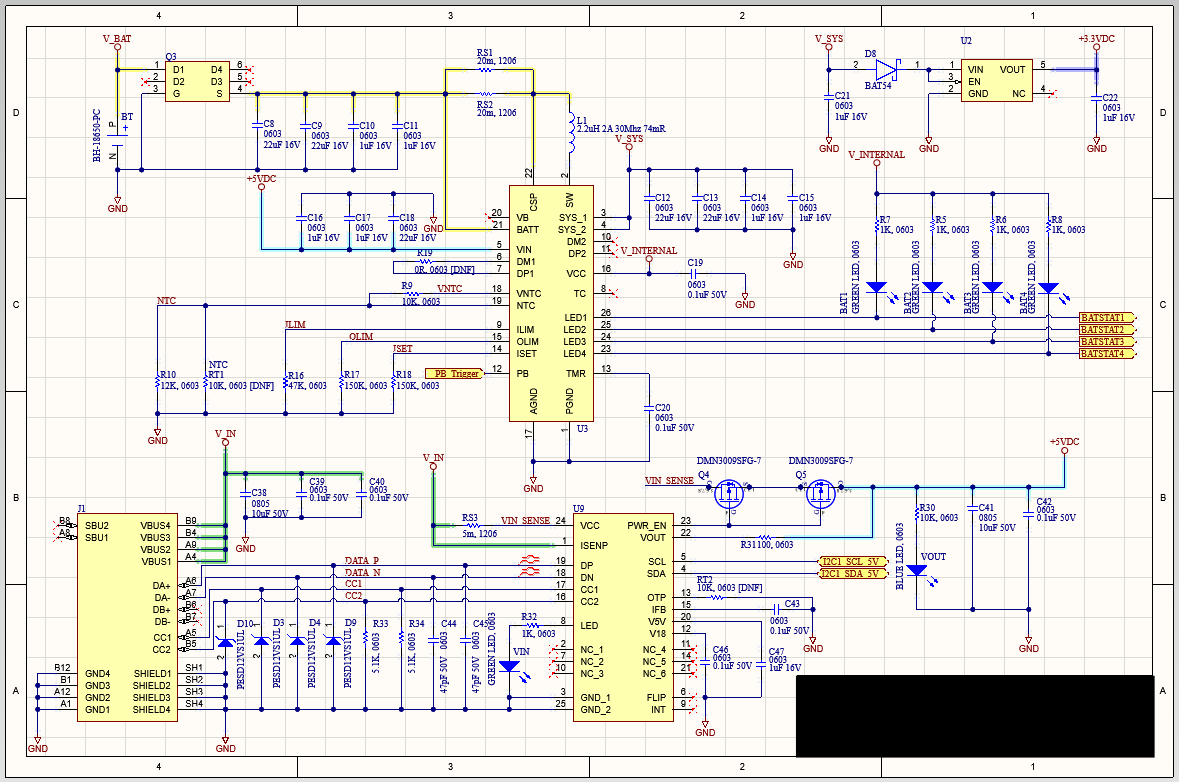

Circuit schematic showing battery and USB-C connections, power regulation and status indicators.

03 / PCB layout

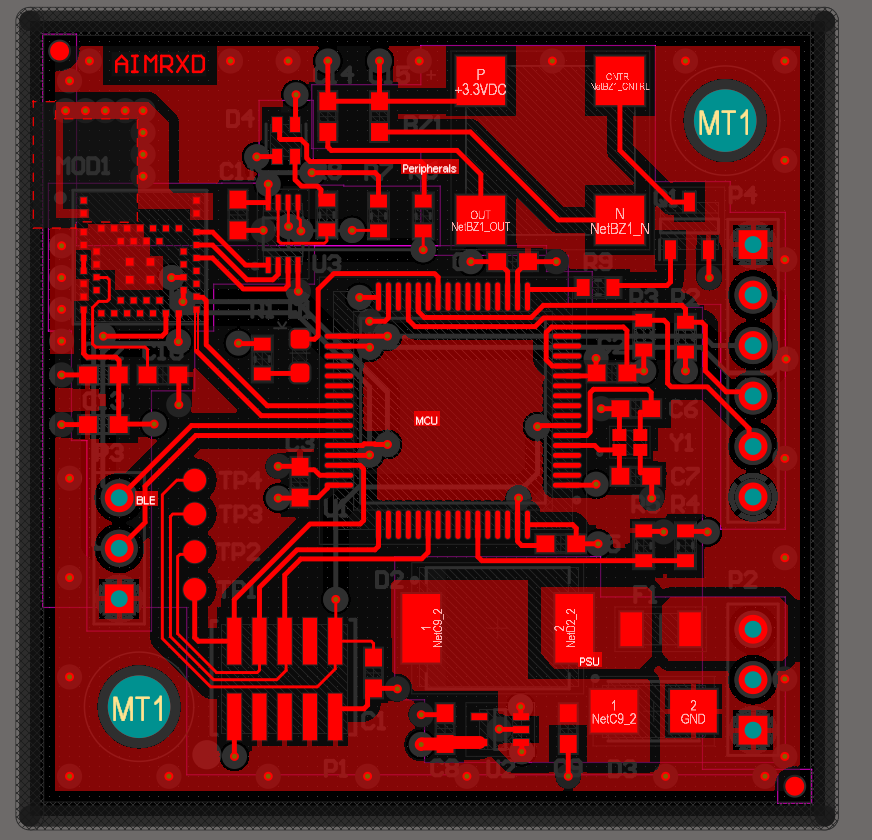

AIMRXD PCB layout showing routed copper, component footprints, connectors and mounting holes.

04 / Prototype & bring-up

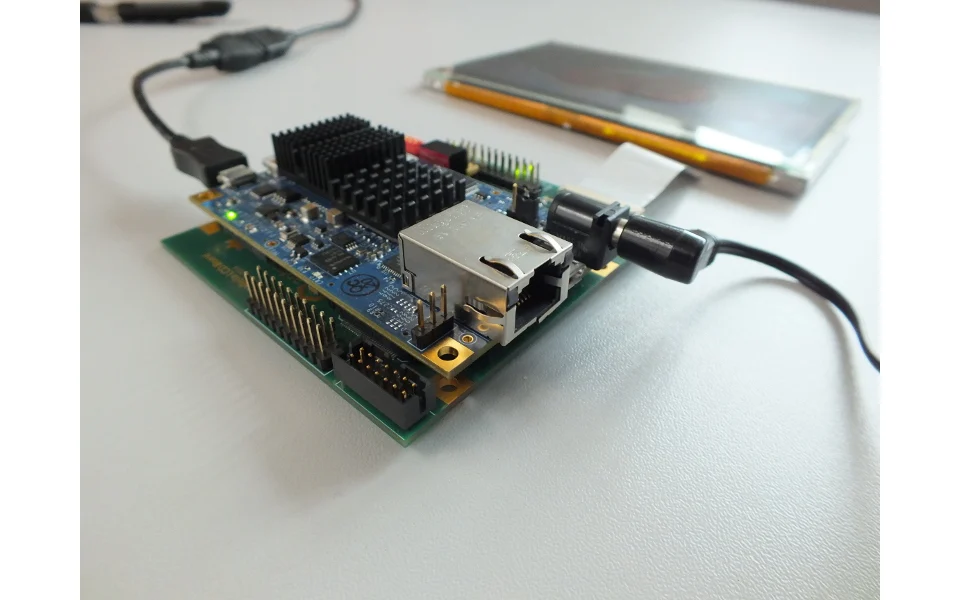

The assembled Antmicro LCD baseboard connected to a Parallella computer, display and power cables.

05 / System validation

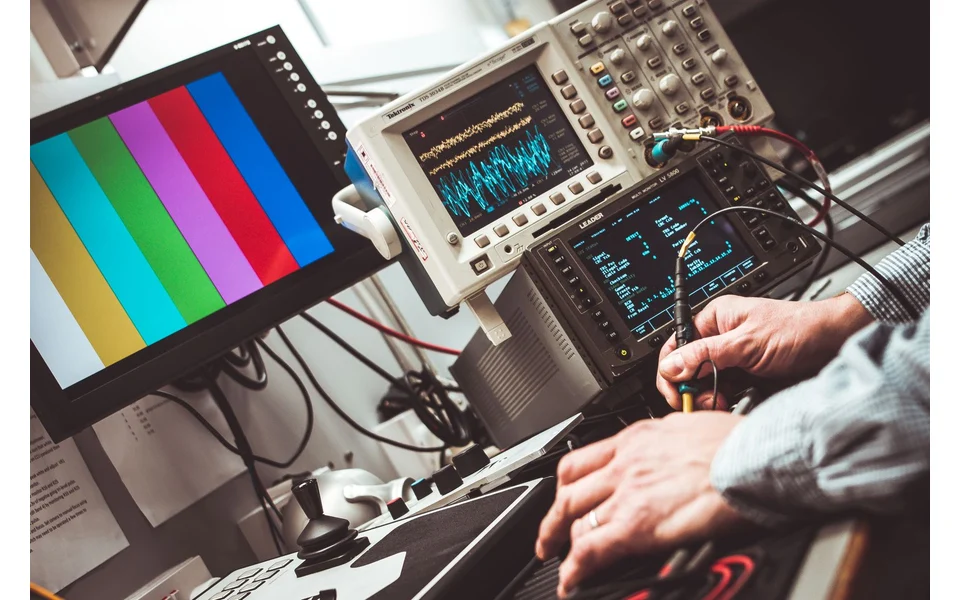

An engineer taking measurements at an electronic test bench with a connected oscilloscope displaying signal traces.

06 / Production handover

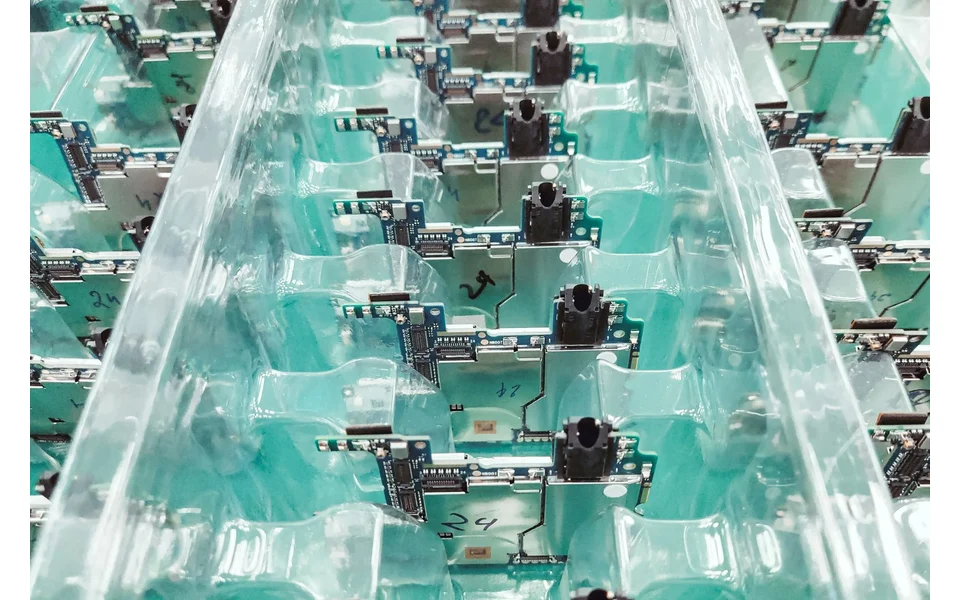

Circuit boards arranged in a rack during electronics manufacturing.
